High Temperature Cameras

There are many applications where the ambient temperature is above the normal 120 degree Fahrenheit maximum of the standard cameras. Our high temperature cameras have a variety of cooling options that will enable them to withstand temperatures up to 500 degrees F (260 C). Cooling options include standard air purging, Vortex cooling tube, insulating jacket and even a special water jacket that will keep the camera at a cool and reliable operating temperature.

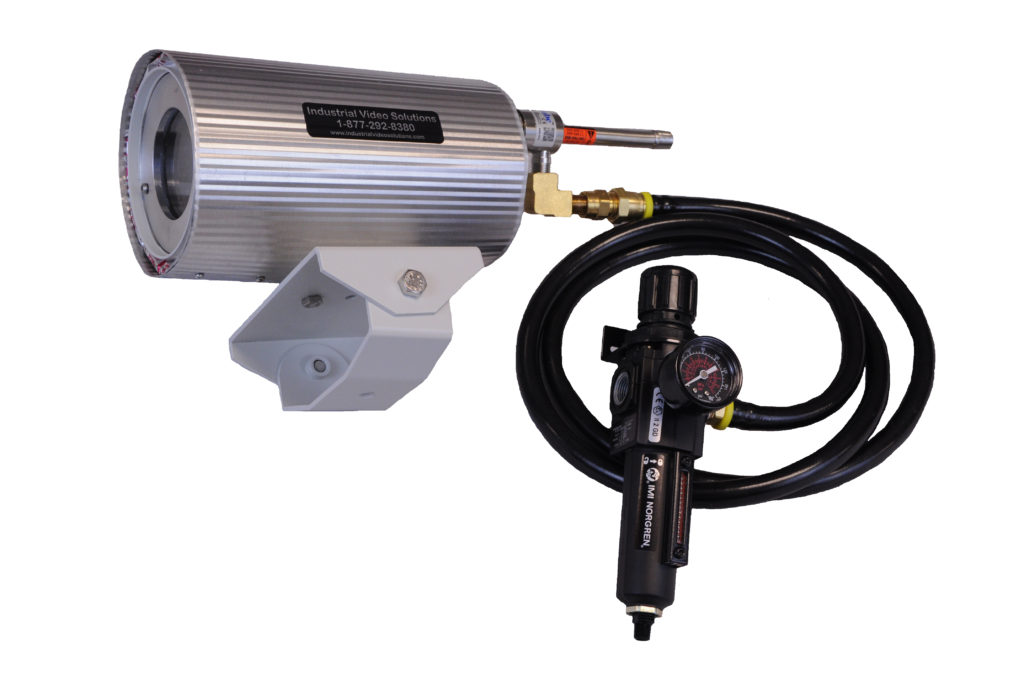

High Temperature Cameras

For high temperature applications up to approximately 500 degrees F

(with cooling options) High resolution color or day/night imager Variety of available lenses including manually adjusted vari-focal type, mechanical and electronic auto iris Borosilicate viewing window High temperature rated cables 12 VDC / 120 VAC / 240 VAC, 50/60 Hz Available in both analog and megapixel IP versions Options

  • Vortex cooling tube
  • Insulation jacket
  • UTP transmitter
  • Fiber optic interface Special Note: Maximum temperature greatly depends upon the temperature of the incoming cooling air. Air feed supply lines should be well insulated and routed away from heat sources.

CALL 615-591-3379 to Inquire or Order!
